max output power
1.short-circuit protection,charger o/p current automatically when short-circuit.
2.overload protection:charger o/p current limited automatically when overload.
3.reverse polarity protection:it will shut down when the wire is connected,charge DC fuse or remove the fault.
4.3-stage charging mode: CC(constant current), CV(constant voltage) and float stage.
5. Reliable, elegant,Small size, light,
6.charging state:two LED display.
7.all kinds of production has passed the CE certification.
8.Efficiency: ≥88 %( full capacity)
1.Temperature: -10~45 Degree
2.Hi-pot: ≥AC1500 (P to S),≥AC1500 (P to FG)
3.Life Expectancy: 50,000H at 25 Degree
1. Electrical forklift
2. Electrical motorcycle
3. Electrical tourist-car
ES-S (120W) Battery Charger Datasheet :
Full automatic transition of CC, CV and Float/cut-off
Precise limit of voltage & current, guarantee fully charged and avoid over charge
Protections: over current, over voltage, short circuit and reverse polarity
High Efficiency: 95%~98%, PFC: 0.96, eco-friendly
Two LED indicators, Aluminium, elegant and reliable

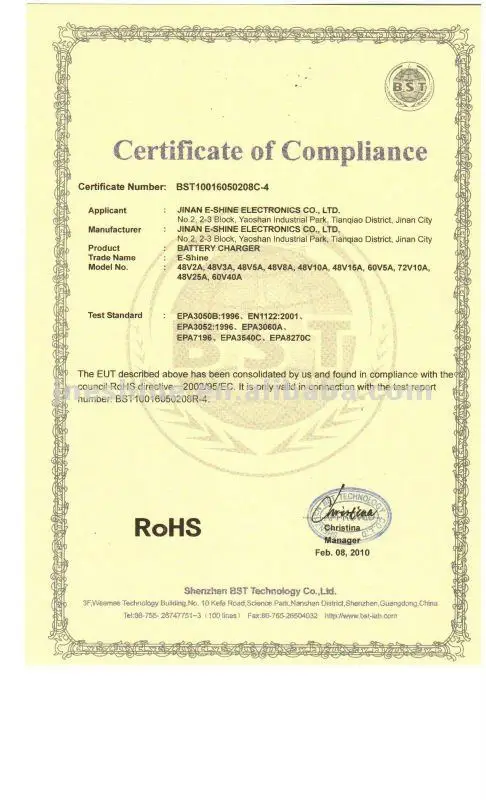

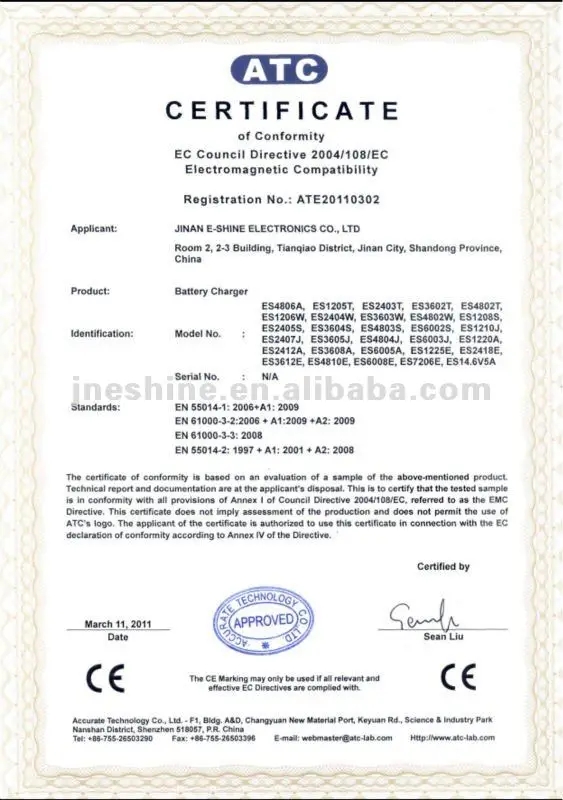

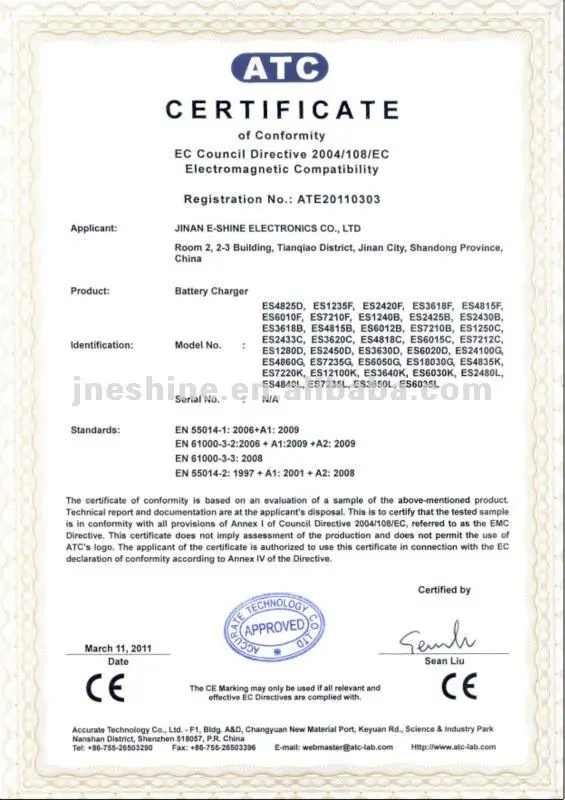

CE & ROHS Certified, Safety and High Quality
Note: Cut-off point for Li battery is 5% of CC, and it can be set between 5%-10%.
