12V15A charger for AGM/GEL/LEAD-ACID battery

FOB Reference Price:Get Latest Price
  • 1 - 9 Pieces
    US $40.00
  • 10 - 99 Pieces
    US $39.00
  • >=100 Pieces
    US $36.00
Report Suspicious Activity
Overview
Quick Details
Brand Name:
E-Shine
Model Number:
ES-1215A
Use:
Standard Battery
Type:
Electric
Place of Origin:
Shandong, China (Mainland)
Socket Standard:
EU/AU/UK/US
weight:
1.2kg
size:
180*90*63mm
Aluminium shell:
black & silver
input voltage:
90~120V
output voltage:
14.7V
output current:
15A
warantee:
1 year
certification:
CE & ROHS
package:
15pc/carton
SupplyAbility
SupplyAbility:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 pc per box ,15 boxes per carton,carton size:540*430*330mm
Port
Qingdao
Lead Time :
3-5 days after receive your payment



Specifications:







size

180*90*63mm

net weight

1.2kg

max output power

360W

certfication

CE







 Features:







    1.short-circuit protection,charger o/p current automatically when short-circuit.







    2.overload protection:charger o/p current limited automatically when overload.







    3.reverse polarity protection:it will shut down when the wire is connected,charge DC fuse or remove the fault.







    4.3-stage charging mode: CC(constant current), CV(constant voltage) and float stage.







    5. Reliable, elegant,Small size, light,







    6.charging state:two LED display.







    7.all kinds of production has passed the CE certification.







    8.Efficiency: ≥88 %( full capacity)







Operate Condition:







    1.Temperature: -10~45 Degree







    2.Hi-pot: ≥AC1500 (P to S),≥AC1500 (P to FG)







    3.Life Expectancy: 50,000H at 25 Degree







Apply to:







   1. Electrical motorcycle



   2. lead-acid battery



   3. Electrical carvan charger



ES-360W battery charger specification



No.

spec

Constant voltage

Constant current

Transition/

Cut-off

Weight

size

Lead-acid

Li-Mn

Lifepo4

Max (A)

Lead-acid

Li

(kg)

(mm)

1

12V

14.7V

16.8V

14.6V

20

4

1

1.2

180*90*63



2

24V

29.4V

29.4V

29.2V

12

2.4

0.6

3

36V

44.1V

42.0V

43.8V

8

1.6

0.4

4

48V

58.8V

54.6V

58.4V

6

1.2

0.3

5

60V

73.5V

75.6V

73.0V

5

1.0

0.25

6

72V

88.2V

84.0V

87.6V

4

0.8

0.2

Features

1

Full automatic transition of CC, CV and Float/cut-off

2

Precise limit of voltage & current, guarantee fully charged and avoid over charge

3

Protections: over current, over voltage, short circuit and reverse polarity

4

High Efficiency: 95%~98%, PFC: 0.96, eco-friendly

5

Two LED indicators, Aluminium, elegant and reliable

6

CE & ROHS Certified, Safety and High Quality

Note: Cut-off point for Li battery is 5% of CC, and it can be set between 5%-10%.

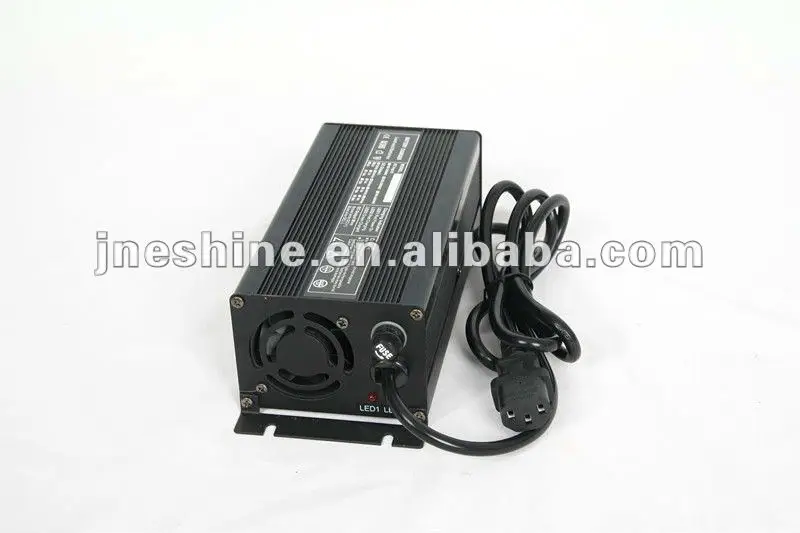

Detai show:

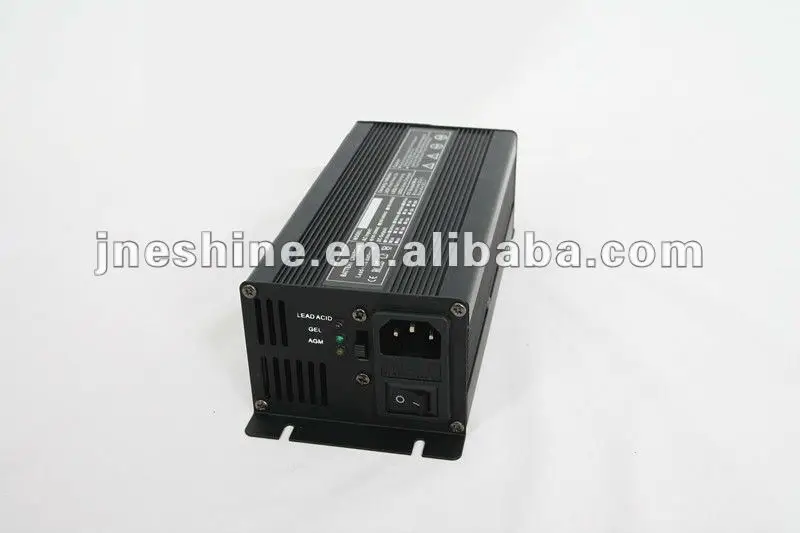

 This charger can charger three battery :AGM/GEL/LEAD-ACID battery. Just choose the    trun the switch right before charging.





                                                       ES-360W Structure drawing
